Applying the Principal Stress Formula to 3D Stress States
In mechanical engineering, understanding stress states is crucial for designing safe and reliable components. While simple uniaxial stress states are relatively straightforward to analyze, many real-world applications involve complex three-dimensional (3D) stress states. These complex stress states necessitate the use of the principal stress formula to determine the maximum and minimum normal stresses, which are critical for predicting material failure. This article delves into the application of the principal stress formula for 3D stress states, covering the theoretical foundation, practical examples, and common pitfalls.
Understanding Stress States
Before diving into the principal stress formula, it's essential to understand the concept of stress. Stress is a measure of the internal forces acting within a deformable body. It's typically expressed as force per unit area (e.g., Pascals (Pa) or pounds per square inch (psi)).

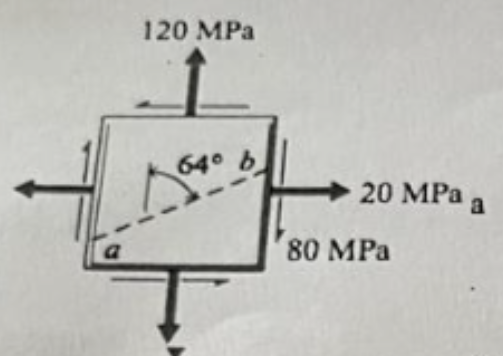

In a 3D stress state, at any point within a material, there are stresses acting in three mutually perpendicular directions. These stresses can be represented by a stress tensor:
```
σ =
| σx τxy τxz |
|---|
| τyx σy τyz |
| τzx τzy σz |
| ``` |
Where: σx, σy, and σz are the normal stresses acting on the x, y, and z planes, respectively. These are tensile if positive and compressive if negative. τxy, τxz, τyz are the shear stresses acting on the x, y, and z planes, respectively. Note that τxy = τyx, τxz = τzx, and τyz = τzy due to equilibrium considerations.
The Principal Stress Formula: Finding the Extremes
The principal stresses, denoted as σ₁, σ₂, and σ₃, are the maximum and minimum normal stresses that occur on planes where the shear stresses are zero. These planes are called principal planes. Knowing the principal stresses is essential for determining whether a material will yield or fracture under a given load. The principal stress formula aims to find these values.
To determine the principal stresses in a 3D stress state, we need to solve the following characteristic equation:
```
det(σ - λI) = 0
```
Where: σ is the stress tensor described above. λ (lambda) represents the principal stresses (σ₁, σ₂, σ₃).
I is the identity matrix.
det() denotes the determinant of the matrix.
Expanding the determinant, we obtain a cubic equation:
```
λ³ - I₁λ² + I₂λ - I₃ = 0
```
Where:
I₁ = σx + σy + σz (First stress invariant)
I₂ = σxσy + σyσz + σxσz - τxy² - τyz² - τxz² (Second stress invariant)
I₃ = σxσyσz + 2τxyτyzτxz - σxτyz² - σyτxz² - σzτxy² (Third stress invariant)
The roots of this cubic equation (λ₁, λ₂, λ₃) are the principal stresses σ₁, σ₂, and σ₃. By convention, they are ordered such that σ₁ ≥ σ₂ ≥ σ₃.
Determining Principal Stress Directions (Principal Planes)
Once the principal stresses are known, we can determine the orientation of the principal planes. This is done by substituting each principal stress value (σ₁, σ₂, σ₃) back into the following equation:
```
(σ - σi I)v = 0
```
Where: σi is one of the principal stresses (σ₁, σ₂, or σ₃).
v is the eigenvector corresponding to σi, which represents the direction cosines of the normal to the principal plane.
Solving this equation for each principal stress yields the eigenvectors (v₁, v₂, v₃), which define the directions of the principal planes.
Practical Applications of Principal Stress Analysis
Principal stress analysis finds applications in diverse engineering fields. Here are a few examples: Pressure Vessels: Analyzing the stress distribution in pressure vessels is critical for ensuring structural integrity. Principal stress analysis helps determine the maximum tensile stress, which dictates the vessel's burst pressure. Beams: In beams subjected to bending and shear, principal stresses provide insights into the stress concentration at critical locations, such as near supports and points of load application. This information is crucial for preventing bending failure. Rotating Machinery: Rotating components, like turbine blades and shafts, experience complex stress states due to centrifugal forces and external loads. Principal stress analysis is essential for designing against fatigue failure. Structural Analysis: Finite element analysis (FEA) extensively relies on principal stress calculations to assess the structural integrity of complex structures under various loading conditions. Thermal Stress:Temperature gradients within a material can induce thermal stresses. Principal stress analysis is used to predict potential cracking or deformation due to these stresses.
How do you calculate hoop stress in thin-walled cylinders?
Hoop stress (σθ) in a thin-walled cylinder subjected to internal pressure (p) can be calculated using the formula: σθ = (pr)/t, where 'r' is the radius of the cylinder and 't' is the wall thickness. This formula provides an approximation, but principal stress analysis gives a more accurate stress distribution including radial and axial components. It's important to note that the hoop stress is only one component of the full 3D stress state in the cylinder wall.
What is the difference between true stress and engineering stress?
Engineering stress is calculated by dividing the applied force by the original cross-sectional area of the material, while true stress is calculated by dividing the applied force by the instantaneous cross-sectional area. True stress provides a more accurate representation of the stress experienced by the material, especially during plastic deformation, as it accounts for the reduction in cross-sectional area. While engineering stress is easier to calculate and commonly used for design purposes, true stress is vital in understanding material behavior and predicting failure under large strains. Principal stress can be calculated using either true or engineering stress values; using true stress will generally provide a more accurate prediction of failure.
When should principal stress formulas be applied in design?
Principal stress formulas are crucial when dealing with multiaxial stress states where stresses act in multiple directions simultaneously. These formulas allow engineers to determine the maximum and minimum normal stresses, which are essential for applying failure criteria such as the von Mises criterion or the Tresca criterion to predict yielding or fracture. They are especially important in complex geometries, stress concentrations (e.g., around holes or corners), and when analyzing components subjected to combined loading (e.g., bending and torsion). Ignoring principal stress analysis in such scenarios can lead to underestimation of the actual stress levels and potentially catastrophic failures.
Worked-Out Example
Let's consider a point in a solid where the stress tensor is given by:
```
σ =
| 100 50 0 | |
|---|---|
| 50 80 20 | |
| 0 20 60 | MPa |
| ``` |
Step 1: Calculate the stress invariants.
I₁ = σx + σy + σz = 100 + 80 + 60 = 240 MPa
I₂ = σxσy + σyσz + σxσz - τxy² - τyz² - τxz² = (100)(80) + (80)(60) + (100)(60) - (50)² - (20)² - (0)² = 8000 + 4800 + 6000 - 2500 - 400 - 0 = 15900 MPa²
I₃ = σxσyσz + 2τxyτyzτxz - σxτyz² - σyτxz² - σzτxy² = (100)(80)(60) + 2(50)(20)(0) - (100)(20)² - (80)(0)² - (60)(50)² = 480000 + 0 - 40000 - 0 - 150000 = 290000 MPa³
Step 2: Form the cubic equation.
```
λ³ - 240λ² + 15900λ - 290000 = 0
```
Step 3: Solve the cubic equation.
Solving this equation (using numerical methods or software) yields the principal stresses: σ₁ ≈ 152.47 MPa σ₂ ≈
67.53 MPa σ₃ ≈
20.00 MPa
Step 4: Determine the principal stress directions (optional).
For σ₁ = 152.47 MPa, we substitute this value into (σ - σi I)v = 0:
```
| 100-152.47 50 0 | vx | 0 | ||
|---|---|---|---|---|
| 50 80-152.47 20 | vy | = | 0 | |
| 0 20 60-152.47 | vz | 0 | ||
| ``` |
This simplifies to:
```
| -52.47 50 0 | vx | 0 | ||
|---|---|---|---|---|
| 50 -72.47 20 | vy | = | 0 | |
| 0 20 -92.47 | vz | 0 | ||
| ``` |
Solving this system of linear equations (you'll only get ratios of vx, vy, and vz), we get an eigenvector approximately proportional to:
v₁ ≈ [0.68,
0.73,
0.09]
This vector represents the direction cosines of the normal to the principal plane where σ₁ acts. We can repeat this process for σ₂ and σ₃ to find v₂ and v₃.
Common Pitfalls and Misconceptions
Confusing Principal Stress with Normal Stress: Principal stresses are themaximumandminimumnormal stresses at a point, while normal stresses are simply the stresses acting perpendicular to a given plane. Assuming Principal Stresses are Always Tensile: Principal stresses can be tensile (positive) or compressive (negative). Neglecting Shear Stresses: Failing to account for shear stresses can lead to an inaccurate determination of principal stresses. The principal stress calculation incorporates shear stresses directly. Applying 2D Analysis to 3D Problems: Simplifying a 3D stress state to a 2D one can lead to significant errors, especially when the out-of-plane stresses are significant. Incorrectly Ordering Principal Stresses:Ensure that the principal stresses are ordered correctly (σ₁ ≥ σ₂ ≥ σ₃) for consistent application of failure criteria.
Conclusion
Understanding and applying the principal stress formula to 3D stress states is essential for the safe and efficient design of engineering components. This article has provided a comprehensive overview of the theoretical foundation, practical applications, and common pitfalls associated with principal stress analysis. By mastering these concepts, engineers can confidently analyze complex stress states and ensure the structural integrity of their designs. Further study of failure theories like the von Mises and Tresca criteria will deepen the understanding of how principal stresses are used to predict material failure.
