Maximum Stress Formula in Elastic and Plastic Design: A Comprehensive Guide
Understanding and applying the maximum stress formula is crucial in mechanical engineering design, ensuring the structural integrity and safety of components under various loading conditions. This article delves into the intricacies of maximum stress calculations, covering both elastic and plastic design considerations, relevant formulas, real-world applications, and common pitfalls. Whether you are a student, a practicing engineer, or a researcher, this guide will provide a robust understanding of this essential concept.
Defining Stress and its Importance in Design
Stress, denoted by the Greek letter sigma (σ), is a measure of the internal forces acting within a deformable body. It is defined as the force (F) acting per unit area (A):
σ = F/A
Stress is typically expressed in Pascals (Pa) or pounds per square inch (psi). The concept of stress is paramount in mechanical design because it allows engineers to predict the behavior of materials under load and design components that can withstand those loads without failure. Failure can manifest as yielding (permanent deformation) in ductile materials or fracture in brittle materials.
Different Types of Stress
Before delving into maximum stress formulas, it’s important to distinguish between the main types of stress: Normal Stress (σ): This is the force acting perpendicular to the surface. Tensile stress is a normal stress caused by a pulling force, while compressive stress is a normal stress caused by a pushing force. Shear Stress (τ): This is the force acting parallel to the surface, also known as tangential stress. Examples include stress in a bolt due to a shearing force or stress in a shaft due to torsion. Bending Stress (σb): This type of stress arises in beams and other structural members subjected to bending moments. It varies linearly across the cross-section. Torsional Stress (τt): This stress occurs in shafts subjected to twisting moments (torques). It is a form of shear stress.

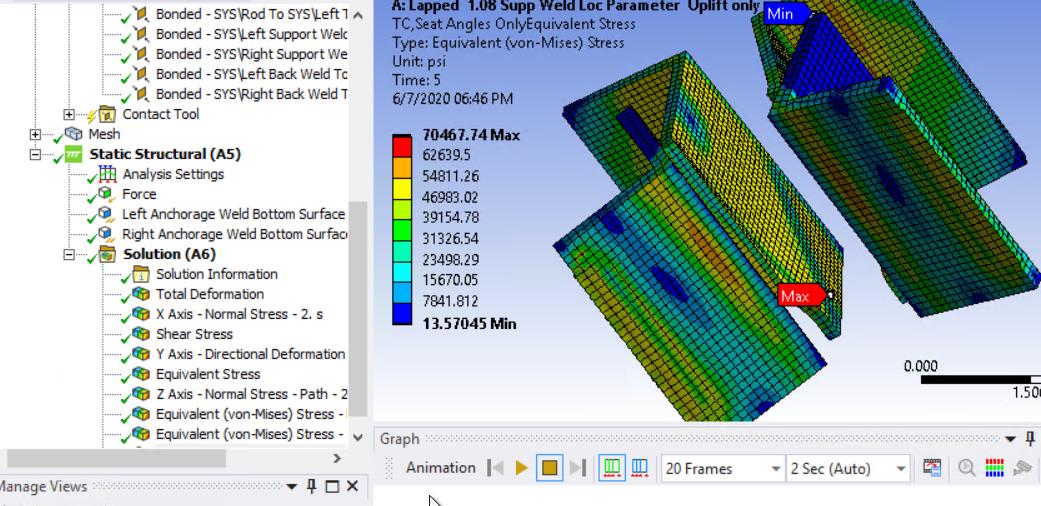

Maximum Stress in Elastic Design
Elastic design aims to keep stresses within the elastic limit of the material. This ensures that the component returns to its original shape upon removal of the load and avoids permanent deformation. Several formulas help determine the maximum stress in different scenarios within the elastic region.
Axial Stress
For a member subjected to an axial load (either tensile or compressive), the maximum stress is simply the applied force divided by the cross-sectional area:
σmax = P/A
Where:
P is the applied axial force
A is the cross-sectional area
Example: A steel rod with a diameter of 20 mm is subjected to a tensile force of 50 k N. Calculate the maximum tensile stress.
Area (A) = πr2 = π (0.01 m)2 =
3.1416 x 10-4 m2
Force (P) = 50,000 N σmax = P/A = 50,000 N / 3.1416 x 10-4 m2 =
159.15 MPa
Bending Stress in Beams
For a beam subjected to bending, the maximum bending stress occurs at the outermost fiber of the beam's cross-section and is given by:
σmax = My / I
Where:
M is the bending moment at the section under consideration
y is the distance from the neutral axis to the outermost fiber
I is the area moment of inertia of the cross-section about the neutral axis
The term y/I is often replaced by S, the section modulus, simplifying the formula to:
σmax = M/S
Example: A cantilever beam of rectangular cross-section (50 mm wide x 100 mm high) is subjected to a bending moment of 5 k N.m at its fixed end. Calculate the maximum bending stress.
Bending Moment (M) = 5000 N.m
Area Moment of Inertia (I) = (bh3)/12 = (0.05 m (0.1 m)3)/12 =
4.167 x 10-6 m4
Distance to outermost fiber (y) = h/2 = 0.1 m / 2 =
0.05 m σmax = (5000 N.m
0.05 m) /
4.167 x 10-6 m4 =
59.99 MPa (approximately 60 MPa)
Torsional Shear Stress in Shafts
For a circular shaft subjected to a torque (T), the maximum shear stress occurs at the outer surface of the shaft and is given by:
τmax = Tr / J
Where:
T is the applied torque
r is the radius of the shaft
J is the polar moment of inertia of the shaft’s cross-section
For a solid circular shaft, J = (π/2)r4. For a hollow circular shaft, J = (π/2)(ro4 - ri4), where ro and ri are the outer and inner radii, respectively.
Example: A solid circular steel shaft with a diameter of 40 mm is subjected to a torque of 200 N.m. Calculate the maximum shear stress.
Torque (T) = 200 N.m
Radius (r) = 0.02 m
Polar Moment of Inertia (J) = (π/2)(0.02 m)4 =
2.513 x 10-7 m4 τmax = (200 N.m
0.02 m) /
2.513 x 10-7 m4 =
15.92 MPa
Principal Stresses
In many real-world scenarios, components are subjected to combined loading, resulting in both normal and shear stresses acting on a point. To determine the maximum normal stress (principal stress) and maximum shear stress at that point, we use the following formulas:
σ1,2 = (σx + σy)/2 ± √[((σx - σy)/2)2 + τxy2]
τmax = √[((σx - σy)/2)2 + τxy2]
Where: σx and σy are the normal stresses in the x and y directions, respectively. τxy is the shear stress acting on the x-y plane. σ1 and σ2 are the principal stresses (maximum and minimum normal stresses). τmax is the maximum shear stress.
When should principal stress formulas be applied in design?
Principal stress formulas should be applied when a component is subjected to combined loading conditions, where both normal and shear stresses are present. This is particularly relevant in complex geometries, pressure vessels, and situations where stress concentrations exist. Applying these formulas helps to identify the critical stress states and design the component to withstand these stresses without failure.
Maximum Stress in Plastic Design
Plastic design, also known as limit state design, allows for some degree of plastic deformation in the component under ultimate load conditions. The aim is to ensure the component can carry the required load even after some yielding has occurred. This approach is often used in structural steel design.
Yield Strength and Ultimate Tensile Strength
In plastic design, two key material properties are crucial: Yield Strength (σy): The stress at which the material begins to exhibit permanent deformation. Ultimate Tensile Strength (σu): The maximum stress the material can withstand before it starts to fracture.
Plastic Moment Capacity
For beams in plastic design, the concept of plastic moment capacity (Mp) is used. It represents the maximum moment a beam can resist when the entire cross-section has yielded. It is calculated as:
Mp = σy Zp
Where: σy is the yield strength of the material
Zp is the plastic section modulus
The plastic section modulus (Zp) depends on the shape of the cross-section and can be found in material handbooks or calculated from the geometry.
Load Factors
To account for uncertainties in loading and material properties, load factors are applied in plastic design. The factored load must be less than or equal to the resistance of the component:
Factored Load ≤ Resistance
For example, in structural steel design, load factors are applied to dead loads and live loads to determine the ultimate load that the structure must be able to withstand. These load factors are specified in design codes.
Application to Pressure Vessels
Pressure vessels represent a classic real-world application of stress analysis. Thin-walled pressure vessels experience hoop stress (circumferential stress) and longitudinal stress. The maximum stress is usually the hoop stress.
How do you calculate hoop stress in thin-walled cylinders?
The hoop stress (σh) in a thin-walled cylinder subjected to internal pressure (p) is calculated as:
σh = (pr)/t
Where:
p is the internal pressure
r is the radius of the cylinder
t is the wall thickness
Longitudinal stress (σl) is half of the hoop stress:
σl = (pr)/(2t)
The maximum shear stress in a thin-walled cylinder is:
τmax = (σh - σl)/2 = (pr)/(4t)
Example: A thin-walled cylindrical pressure vessel with a radius of 0.5 m and a wall thickness of 10 mm is subjected to an internal pressure of 2 MPa. Calculate the hoop stress and longitudinal stress.
Pressure (p) = 2 MPa = 2 x 106 Pa
Radius (r) = 0.5 m
Thickness (t) = 0.01 m σh = (2 x 106 Pa
0.5 m) /
0.01 m = 100 MPa σl = (2 x 106 Pa
0.5 m) / (2
0.01 m) = 50 MPa
Common Pitfalls and Misconceptions
Confusing Engineering Stress with True Stress: Engineering stress is calculated using the original cross-sectional area, while true stress is calculated using the instantaneous cross-sectional area. True stress is more accurate at higher strains, especially in plastic deformation.
What is the difference between true stress and engineering stress?
Engineering stress is calculated using the original cross-sectional area of a material, while true stress is calculated using the instantaneous cross-sectional area. Engineering stress simplifies calculations but becomes less accurate at high strains. True stress provides a more accurate representation of the stress state as the material deforms and its cross-sectional area changes.
Neglecting Stress Concentrations: Sharp corners, holes, and other geometric discontinuities can cause stress concentrations, significantly increasing the local stress levels. Stress concentration factors (Kt) must be considered in design.
Incorrectly Applying Formulas: It is crucial to use the correct formula based on the loading conditions and geometry. For example, using the axial stress formula for a beam subjected to bending will lead to incorrect results.
Conclusion
Understanding the maximum stress formula is essential for designing safe and reliable mechanical components. This article has covered the key concepts, formulas, and applications of maximum stress calculations in both elastic and plastic design. By mastering these principles and avoiding common pitfalls, engineers can confidently design structures and machines that withstand the stresses they will encounter in service. Remember to always consider the material properties, loading conditions, and geometry of the component when determining the maximum stress. Using appropriate safety factors and adhering to relevant design codes is also vital for ensuring structural integrity and preventing failures.
