Compressive stress is a fundamental concept in foundation engineering, crucial for ensuring the stability and longevity of structures. It arises when a force is applied to an object, causing it to compress or shorten. Understanding and accurately calculating compressive stress is paramount in designing foundations that can withstand the loads imposed upon them by buildings, bridges, and other infrastructure. Failure to properly account for compressive stress can lead to foundation settlement, cracking, and, in severe cases, structural collapse.
Defining Compressive Stress

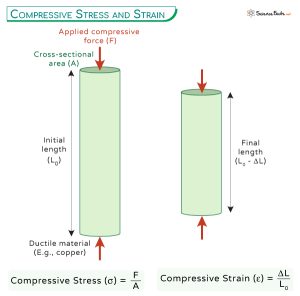

Compressive stress, often denoted by σc, is defined as the force acting perpendicular to a surface divided by the area over which the force is distributed. Mathematically, it's represented as:
σc = F / A
Where: σc is the compressive stress (typically measured in Pascals (Pa) or pounds per square inch (psi)).
F is the compressive force (measured in Newtons (N) or pounds (lbs)).
A is the area over which the force is applied (measured in square meters (m2) or square inches (in2)).
It's essential to remember that compressive stress is considered negative according to the convention where tensile stress is positive. This sign convention helps to differentiate between compressive and tensile forces within a material.
Compressive Stress in Foundation Materials
Foundation engineering deals with a variety of materials subjected to compressive stress, including soil, concrete, and steel. Each material exhibits different behaviors under compression, which must be considered during design.
Soil: Soil's response to compressive stress is complex and depends on factors like soil type (clay, sand, gravel), moisture content, and density. Soil compacts under compressive load, leading to settlement. The bearing capacity of soil, which is the maximum compressive stress it can withstand without failure, is a critical parameter in foundation design. Geotechnical investigations are performed to determine the soil's properties and its ability to support the intended structure.
Concrete: Concrete is strong in compression but relatively weak in tension. This is why reinforced concrete is used in many foundation applications. Steel reinforcement bars (rebar) are embedded within the concrete to provide tensile strength and enhance the overall load-bearing capacity of the foundation. The compressive strength of concrete is a key specification in foundation design, and it's determined through laboratory testing.
Steel: Steel is strong in both compression and tension. Steel piles are often used in deep foundation systems to transfer loads to stronger soil layers deep below the surface. Steel columns are also used to support vertical loads from the structure above, transmitting compressive stress to the foundation.
Calculating Compressive Stress in Foundations
The calculation of compressive stress in foundation engineering depends on the type of foundation and the loading conditions. Here are some common scenarios and the corresponding formulas:
Shallow Foundations (e.g., Spread Footings)
Spread footings are typically used to support individual columns or walls. The compressive stress on the soil beneath the footing is calculated by dividing the total load by the area of the footing:
σc = P / A
Where:
P is the total load applied to the footing (including the weight of the column or wall and any superimposed loads).
A is the area of the footing.
The calculated compressive stress must be less than the allowable bearing capacity of the soil to ensure the stability of the foundation. A factor of safety is typically applied to the bearing capacity to account for uncertainties in soil properties and loading conditions.
Deep Foundations (e.g., Piles)
Piles are used to transfer loads to deeper, stronger soil layers or bedrock. The compressive stress on a pile can be calculated as:
σc = P / Ap
Where:
P is the load applied to the pile.
Ap is the cross-sectional area of the pile.
However, the actual compressive stress distribution along the pile can be more complex due to factors like skin friction (the frictional resistance between the pile and the surrounding soil) and end bearing (the resistance at the tip of the pile). Geotechnical analysis and pile load testing are often used to determine the load-carrying capacity of piles and verify the design assumptions.
Example Calculation: Spread Footing
Let's consider a spread footing supporting a column with a total load of 500 k N (kilonewtons). The footing is square, with dimensions of 2 meters by 2 meters. The allowable bearing capacity of the soil is 150 k Pa (kilopascals).
1.Calculate the area of the footing: A = 2 m 2 m = 4 m2
2.Calculate the compressive stress on the soil: σc = P / A = 500 k N / 4 m2 = 125 k Pa
3.Compare the calculated stress to the allowable bearing capacity: 125 k Pa < 150 k Pa
Since the calculated compressive stress (125 k Pa) is less than the allowable bearing capacity (150 k Pa), the footing is considered safe under these loading conditions. However, a complete foundation design would also need to consider factors like settlement, shear strength, and bending moments.
Factors Affecting Compressive Stress in Foundations
Several factors can influence the compressive stress distribution and magnitude in foundations: Load Distribution:The way the load is applied to the foundation can significantly affect the stress distribution. Concentrated loads will create higher stress concentrations than uniformly distributed loads.
Soil Properties: The type, density, and moisture content of the soil play a crucial role in determining the bearing capacity and settlement characteristics of the foundation.
Foundation Geometry: The size, shape, and depth of the foundation affect the stress distribution in the soil.
Groundwater Table: The presence of groundwater can reduce the effective stress in the soil and affect its bearing capacity.
Environmental Factors: Temperature changes, freeze-thaw cycles, and chemical attack can degrade the foundation materials and affect their compressive strength.
Common Pitfalls and Misconceptions
Assuming Uniform Stress Distribution: In reality, stress distribution under foundations is rarely uniform, especially near the edges of the footing or around piles. Using simplified formulas without considering stress concentrations can lead to underestimation of the maximum stress and potential failure.
Ignoring Settlement: Settlement is an inevitable consequence of compressive stress in soil. Excessive settlement can cause structural damage and functional problems. It is crucial to estimate and control settlement within acceptable limits.
Overlooking the Importance of Geotechnical Investigation: A thorough geotechnical investigation is essential for determining the soil properties and selecting the appropriate foundation type. Relying on assumed soil parameters can lead to unsafe and uneconomical designs.
Neglecting the Time-Dependent Behavior of Soil: Some soils, particularly clays, exhibit time-dependent behavior under compressive stress, leading to long-term settlement. This consolidation process must be considered in the design.
Practical Applications
Understanding compressive stress is vital in numerous practical applications within foundation engineering: Design of Bridge Piers:Bridge piers are subjected to significant compressive loads from the bridge superstructure. Accurate calculation of compressive stress is essential to ensure the stability of the piers and prevent collapse.
Design of High-Rise Building Foundations: High-rise buildings impose substantial compressive loads on the underlying soil. The foundation design must account for these loads and the potential for settlement. Deep foundation systems, such as piles or caissons, are often used to transfer the loads to competent soil layers.
Design of Retaining Walls: Retaining walls are subjected to lateral earth pressure, which induces compressive stress in the wall and the soil behind it. The wall must be designed to resist these stresses and prevent failure.
Design of Dams: Dams are massive structures that exert tremendous compressive forces on the foundation. The foundation design must ensure the stability of the dam and prevent seepage or erosion.
Further Considerations and Advanced Analysis
While the basic compressive stress formula (σc = F / A) provides a starting point, more complex scenarios may require advanced analysis techniques: Finite Element Analysis (FEA):FEA is a numerical method used to model complex stress distributions in foundations. It can account for non-uniform loading, complex geometries, and non-linear material behavior.
Soil-Structure Interaction Analysis: This type of analysis considers the interaction between the foundation and the surrounding soil. It can be used to predict settlement, stress distribution, and the overall behavior of the foundation system.
Pile Group Analysis: When piles are used in groups, the load distribution among the piles can be complex. Pile group analysis methods are used to determine the load-carrying capacity and settlement behavior of the pile group.
Conclusion
Compressive stress is a fundamental concept in foundation engineering that plays a critical role in ensuring the safety and stability of structures. By understanding the principles of compressive stress, considering the material properties of soil, concrete, and steel, and applying appropriate calculation methods, engineers can design foundations that can withstand the loads imposed upon them and provide long-term performance. Always remember to consider the various factors that can affect compressive stress distribution, avoid common pitfalls, and utilize advanced analysis techniques when necessary. A robust understanding of compressive stress is not just about formulas; it's about building safe and sustainable infrastructure for the future.
People Also Ask
How does the presence of groundwater affect compressive stress in soil?
The presence of groundwater affects the effective stress in the soil. Effective stress is the stress carried by the soil skeleton, and it's calculated as the total stress minus the pore water pressure (σ' = σ - u, where σ' is effective stress, σ is total stress, and u is pore water pressure). A higher groundwater table increases pore water pressure, reducing the effective stress and thus the soil's shear strength and bearing capacity. This means the soil can withstand less compressive force before failure or excessive settlement.
What is the difference between allowable bearing capacity and ultimate bearing capacity?
Ultimate bearing capacity (qu) is the theoretical maximum pressure a soil can withstand before shear failure. Allowable bearing capacity (qa) is the maximum pressure that can be safely applied to the soil, taking into account a factor of safety (FS): qa = qu / FS. The factor of safety is applied to account for uncertainties in soil properties, loading conditions, and analysis methods. Allowable bearing capacity is the value used in foundation design to ensure structural stability and limit settlement.
When should I use FEA for compressive stress analysis in foundations?
FEA (Finite Element Analysis) should be used when dealing with complex foundation geometries, non-uniform loading conditions, layered soil profiles, or when high accuracy is required. Specifically, consider FEA for:
Foundations supporting complex structures like irregularly shaped buildings or bridges with varying loads.
Situations where soil properties vary significantly with depth or location.
Analyzing the effects of nearby excavations or construction activities on existing foundations.
Detailed settlement predictions, particularly for sensitive structures.
Analyzing the interaction between the foundation, the superstructure, and the surrounding soil.
