Torsional Stress Formula in Drive Shafts

The determination of stress within drive shafts subjected to torsion is a critical aspect of mechanical engineering design. Accurately predicting torsional stress ensures the structural integrity and operational reliability of rotating machinery across various industries. This article delves into the torsional stress formula, its derivation, applications, and practical considerations for engineers and students alike.

Understanding Torsional Stress in Drive Shafts

Torsional stress arises when a twisting force, or torque, is applied to a structural member, such as a drive shaft. This torque induces shear stresses within the material, causing deformation and potentially leading to failure if the stresses exceed the material's torsional strength. The ability to quantify these stresses accurately is paramount in designing robust and efficient drive systems. Drive shafts, which are commonly used to transmit power from an engine to wheels or other rotating components, are prime examples of elements subjected to torsional loading. Their design necessitates a thorough understanding of torsional stress principles.

The Torsional Stress Formula: Derivation and Explanation

The fundamental formula for calculating torsional stress (τ) in a circular shaft is derived from the principles of elasticity and the geometry of deformation under torsion. The formula is:

τ = (T r) / J

Where: τ (tau) represents the torsional shear stress, typically measured in Pascals (Pa) or pounds per square inch (psi).

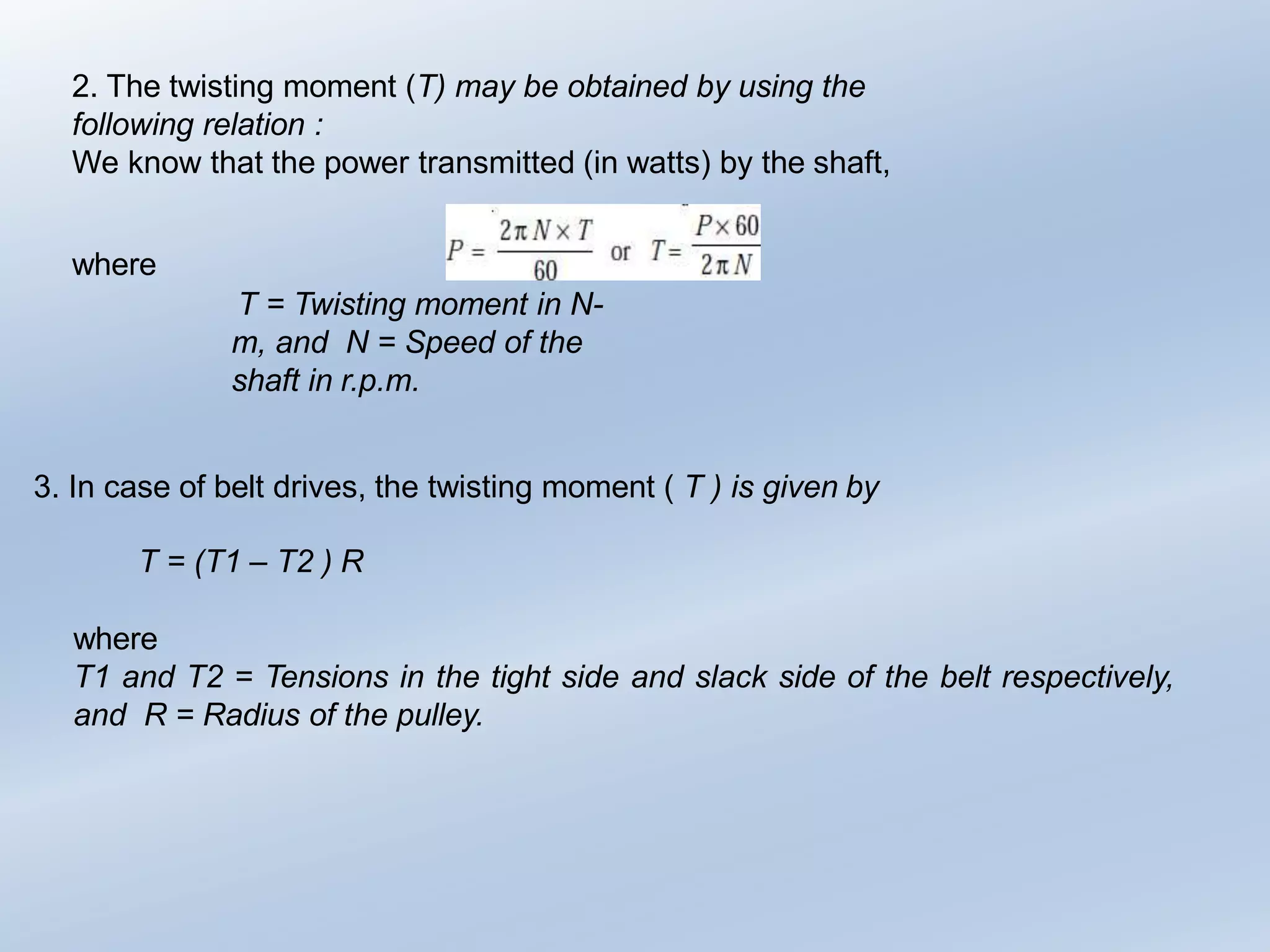

T is the applied torque, measured in Newton-meters (N·m) or pound-feet (lb·ft).

r is the radial distance from the center of the shaft to the point where the stress is being calculated, measured in meters (m) or inches (in). It's important to note that the maximum shear stress occurs at the outer surface of the shaft (r = radius of shaft).

J is the polar moment of inertia of the shaft's cross-section, measured in meters to the fourth power (m⁴) or inches to the fourth power (in⁴).

The derivation of this formula relies on several key assumptions:

1. The material of the shaft is homogeneous and isotropic (possessing uniform properties in all directions).

2. The shaft is subjected to pure torsion, meaning that no axial forces or bending moments are present.

3. The shaft's cross-section remains circular during twisting.

4. The material behaves linearly elastically, meaning that stress is proportional to strain, and the material returns to its original shape after the load is removed.

   For a solid circular shaft, the polar moment of inertia (J) is given by:

   J = (π d⁴) / 32 = (π r⁴) / 2

   Where:

   d is the diameter of the shaft.

   r is the radius of the shaft.

   For a hollow circular shaft (tube), the polar moment of inertia is:

   J = (π / 32) (d_o⁴ - d_i⁴) = (π / 2) (r_o⁴ - r_i⁴)

   Where:

   d_o is the outer diameter of the shaft.

   d_i is the inner diameter of the shaft.

   r_o is the outer radius of the shaft.

   r_i is the inner radius of the shaft.

   The torsional stress formula highlights a crucial relationship: stress is directly proportional to the applied torque and the radial distance from the center, and inversely proportional to the polar moment of inertia. This means that increasing the torque or considering points farther from the shaft's center increases the stress, while increasing the shaft's polar moment of inertia (through larger diameter or using a hollow shaft design strategically) reduces the stress.

   Applications of the Torsional Stress Formula



   The torsional stress formula finds widespread application in numerous engineering scenarios, including: Drive Shaft Design:Calculating the torsional stress in automotive, aerospace, and industrial drive shafts to ensure they can withstand the operating torques without failure. This involves selecting appropriate materials, dimensions, and geometries.

   Rotating Machinery Analysis: Analyzing the stress distribution in the shafts of motors, generators, and turbines to predict their lifespan and prevent catastrophic failures. Finite element analysis (FEA) is often used in conjunction with the torsional stress formula for complex geometries and loading conditions.

   Coupling Design: Determining the stress in shaft couplings, which connect different shafts together, to ensure they can transmit the required torque without exceeding their allowable stress limits.

   Drill String Analysis: In oil and gas drilling, calculating the torsional stress in drill strings, which are long, slender shafts used to transmit torque to the drill bit. This is crucial for preventing drill string failure in harsh downhole environments.

   Material Testing: Determining the torsional strength of materials by subjecting specimens to torsion and measuring the torque at failure. This data is used to develop material specifications and design guidelines.

   Worked Example 1: Solid Shaft



   A solid steel shaft with a diameter of 50 mm is subjected to a torque of 500 N·m. Calculate the maximum torsional shear stress in the shaft.

1.Calculate the polar moment of inertia (J):

J = (π d⁴) / 32 = (π (0.05 m)⁴) / 32 ≈

6.136 x 10^-8 m⁴

2.Calculate the maximum torsional shear stress (τ_max):

τ_max = (T r) / J = (500 N·m 0.025 m) / (6.136 x 10^-8 m⁴) ≈

20.36 x 10⁶ Pa =

20.36 MPa

Worked Example 2: Hollow Shaft

A hollow aluminum shaft has an outer diameter of 80 mm and an inner diameter of 60 mm. It is subjected to a torque of 1000 N·m. Calculate the maximum torsional shear stress in the shaft.

1.Calculate the polar moment of inertia (J):

J = (π / 32) (d_o⁴ - d_i⁴) = (π / 32) ((0.08 m)⁴ - (0.06 m)⁴) ≈

2.199 x 10^-6 m⁴

2.Calculate the maximum torsional shear stress (τ_max):

τ_max = (T r_o) / J = (1000 N·m 0.04 m) / (2.199 x 10^-6 m⁴) ≈

18.19 x 10⁶ Pa =

18.19 MPa

Important Considerations and Limitations

While the torsional stress formula provides a powerful tool for stress analysis, it's essential to acknowledge its limitations and potential pitfalls: Stress Concentrations:The formula assumes a uniform stress distribution. However, stress concentrations can occur at sharp corners, holes, or other geometric discontinuities. These concentrations can significantly increase the local stress, potentially leading to failure even if the average stress is below the material's yield strength. Finite element analysis (FEA) is a valuable tool for analyzing stress concentrations.

Non-Circular Cross-Sections: The formula is strictly valid only for circular shafts. For shafts with non-circular cross-sections (e.g., square or rectangular), the stress distribution is more complex, and the formula cannot be directly applied. More advanced analytical techniques or FEA is required.

Material Nonlinearity: The formula assumes linear elastic material behavior. If the material is subjected to stresses beyond its yield strength, it will enter the plastic region, and the formula will no longer be accurate. Plasticity theories and nonlinear FEA are needed to analyze such scenarios.

Combined Loading: The formula considers only pure torsion. In real-world applications, shafts are often subjected to combined loading, including torsion, bending, and axial forces. The combined stresses must be analyzed using appropriate stress superposition techniques or FEA.

Dynamic Loading: The formula assumes static loading. If the shaft is subjected to dynamic or fluctuating torques, fatigue effects must be considered. Fatigue analysis involves determining the stress range, number of cycles, and material's fatigue strength to predict the shaft's lifespan.

How do you calculate the angle of twist in a shaft subjected to torsion?

The angle of twist (θ) in radians can be calculated using the formula: θ = (T L) / (G J), where T is the applied torque, L is the length of the shaft, G is the shear modulus of the material, and J is the polar moment of inertia.

What is the difference between torsional stress and bending stress?

Torsional stress is a shear stress caused by twisting forces (torque), while bending stress is a normal stress (tensile or compressive) caused by bending moments. Torsional stress is maximum at the outer surface of a circular shaft, while bending stress varies linearly with distance from the neutral axis.

What materials are commonly used for drive shafts?

Common materials for drive shafts include steel alloys (such as carbon steel, alloy steel, and stainless steel), aluminum alloys, and composite materials (such as carbon fiber reinforced polymers). The choice of material depends on the required strength, stiffness, weight, and cost.

Advanced Techniques for Torsional Stress Analysis

For complex geometries, loading conditions, or material behavior, advanced techniques are often necessary to accurately analyze torsional stress. These techniques include: Finite Element Analysis (FEA):FEA is a numerical method that divides a structure into small elements and solves for the stress and strain distribution within each element. FEA can handle complex geometries, non-linear material behavior, and combined loading conditions.

Boundary Element Method (BEM): BEM is another numerical method that solves for the stress and strain distribution on the surface of a structure. BEM is particularly well-suited for analyzing problems with infinite domains, such as shafts embedded in soil.

Experimental Stress Analysis: Experimental techniques, such as strain gauging and photoelasticity, can be used to measure the stress distribution in a physical prototype. These techniques provide valuable data for validating analytical and numerical models.

Conclusion

The torsional stress formula is a fundamental tool for mechanical engineers designing and analyzing drive shafts and other rotating machinery components. Understanding the formula's derivation, applications, and limitations is crucial for ensuring the structural integrity and operational reliability of these systems. By considering stress concentrations, material nonlinearity, combined loading, and dynamic effects, engineers can accurately predict torsional stress and design robust and efficient drive systems for a wide range of applications. Advanced techniques such as FEA and experimental stress analysis provide valuable tools for analyzing complex scenarios and validating design assumptions.
